Shipping carton measures 14.88 in long by 10.52 in wide by 4.19 in high.

How fast can I get it?

In our warehouse. Arrives on the next truck, typically 2 business days : trucks arrive Tuesday, Wednesday, Thursday and Friday.

What's the model number?

Model number HOM612L100SCP, UPC 047569071232, our SKU 6719793.

Square D

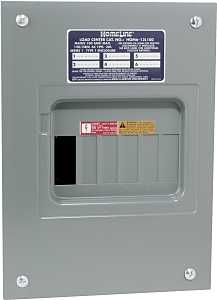

Square D Homeline HOM612L100SCP Load Center, 100 A, 6-Space, 12-Circuit, Main Lug, NEMA 1 Enclosure, Plug, Gray

Model: HOM612L100SCP
UPC: 047569071232
Our SKU: 6719793
Sold by: EA
Factory pack: 1

Accommodates plug-on secondary surge arrestor
Overhead/underground feed simply by rotating the device before installing
Surface mount device cover without a door
Thermoplastic interior assembly is among the most rugged in the industry
Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque

Main lug indoor load center, 100 A, 6 space/12 circuit. NEMA type 1 enclosure. Single phase, 3-wire, solid neutral. Expandable load center capacity with the use of tandem or quad breakers. CSA approved for vertical, horizontal or inverted mounting. Accepts aluminum or copper conductors. Approved to only accept Canadian Homeline breakers.

$35.99per eachLaunch price

Next truckIn on Wednesday, Oct 21 : 2 business days

Quantity

1 next truck

Availability

377 on the Wednesday, Oct 21 truck

Delivery

In on Wednesday, Oct 21 : 2 business days

Delivery runs after the truck lands

Model: HOM612L100SCP
UPC: 047569071232
Our SKU: 6719793
Sold by: EA
Factory pack: 1

Product highlights

Cable Size

8 to 1 AWG

Voltage Rating

120/240 V

Bus Bar Material

Aluminum

Finish

Baked Enamel

Color

Breaker/Load Center Type

Main Lug

Cover/Lid Type

Flush

Current Rating

100 A

Specifications (23)

Full product specifications
Breaker/Load Center Type	Main Lug
Bus Bar Material	Aluminum
Cable Size	8 to 1 AWG
Color	Gray
Cover/Lid Type	Flush
Current Rating	100 A
Enclosure Type	NEMA 1
Finish	Baked Enamel
Interrupt Rating	10 kA
Mounting Type	Plug
Number of Circuits	12
Number of Phases	1
Number Of Spaces	6
Voltage Rating	120/240 V
Wiring Configuration	3-Wire
Weight	7.65 lb
Length (shipping)	14.88 in
Width (shipping)	10.52 in
Height (shipping)	4.19 in
Sold as	Sold by the ea
Factory pack	1
Country of origin	US
Shipping dimensions	14.88 in long by 10.52 in wide by 4.19 in high

Product description

Finished in baked enamel, with breaker/load center type Main Lug, bus bar material Aluminum, cable size 8 to 1 AWG.

Accommodates plug-on secondary surge arrestor
Overhead/underground feed simply by rotating the device before installing
Surface mount device cover without a door
Thermoplastic interior assembly is among the most rugged in the industry
Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque

About this item

What is this?: Square D Homeline HOM612L100SCP Load Center, 100 A, 6-Space, 12-Circuit, Main Lug, NEMA 1 Enclosure, Plug, Gray. Listed under 100 Amp.
What size is it?: Shipping carton measures 14.88 in long by 10.52 in wide by 4.19 in high.
How fast can I get it?: In our warehouse. Arrives on the next truck, typically 2 business days : trucks arrive Tuesday, Wednesday, Thursday and Friday.
What's the model number?: Model number HOM612L100SCP, UPC 047569071232, our SKU 6719793.

Delivery and returns

In on Wednesday, Oct 21 : 2 business days
Returns accepted within 30 days in original packaging with the receipt. Special-order items may be subject to a restocking fee : call the counter at (212) 535-8400.
