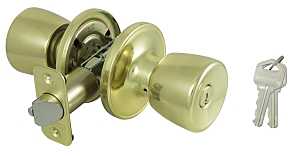

ProSource T9700BRA4V Entry Knob, Brass, K3, KW1 Keyway, 3 Grade. Listed under Entry Door Locks - Knob.

Shipping carton measures 15.94 in long by 8 in wide by 17.13 in high.

How fast can I get it?

In stock at our 1587 First Avenue store. Order by 10am for same-day delivery anywhere in Manhattan.

What's the model number?

Model number T9700BRA4V, UPC 045734655706, our SKU 5099197.

ProSource T9700BRA4V Entry Knob, Brass, K3, KW1 Keyway, 3 Grade

Model: T9700BRA4V
UPC: 045734655706
Our SKU: 5099197
Sold by: CD
Factory pack: 12

The finish is of polished brass
Suitable for residential use
The door knob-grade is 3

For keyed exterior doors. Both knobs lock or unlock by key outside or turn button inside. All-metal components. Solid steel latch assembly. Rust-resistant solid brass keyway for more security. Seamless 1-piece knob for extra strength. Square spindle for right or left handed installations. Easy installation. Cylinder drilled for construction keying. Door prep 2-1/8 in Crossbore, 1 in Edge Bore, 1 x 2-1/4 in Latch Face. Fits 1-3/8 to 1-3/4 in doors.

$10.99per cdLaunch price

In stock todaySame-day delivery in Manhattan, order by 10am

7 loose on the shelf : beyond that, packs of 3

In stock todaySame-day delivery in Manhattan, order by 10am

Quantity

Availability

in store at 1587 First Ave0

at NY Paint & Hardware7

105 more on the Wednesday, Oct 21 truck

Delivery

Same-day delivery in Manhattan, order by 10am

$35 in Manhattan, free at $250+

Model: T9700BRA4V
UPC: 045734655706
Our SKU: 5099197
Sold by: CD
Factory pack: 12

Product highlights

Cross Bore Diameter

2-1/8 in

Backset Size

2-3/8 2-3/4 in

Door Thickness

1-3/8 to 1-3/4 in

Material

Brass

Cylinder Type

5-Pin

Design

Dimensions

438 x 400 x 203 mm

Edge Bore Diameter

Specifications (25)

Full product specifications
Backset Size	2-3/8 2-3/4 in
Cross Bore Diameter	2-1/8 in
Cylinder Type	5-Pin
Design	Ball
Dimensions	438 x 400 x 203 mm
Door Thickness	1-3/8 to 1-3/4 in
Edge Bore Diameter	1 in
Faceplate Size	1 x 2-1/4 in
Includes	(2) Keys
Key Type	Keyed Alike
Keyway Type	K3 KW1
Latch Type	Adjustable
Material	Brass
Number of Cylinders	1
Security Grade	3
Strike Size	44.8 x 57 mm
Strike Type	Full Lip Round Corner
Weight	1.15 lb
Length (shipping)	15.94 in
Width (shipping)	8 in
Height (shipping)	17.13 in
Sold as	Sold by the cd
Factory pack	12
Country of origin	TW
Shipping dimensions	15.94 in long by 8 in wide by 17.13 in high

Documents

ProSource 5099197 Instructions (PDF)

Product description

Made of brass, with backset size 2-3/8 2-3/4 in, cross bore diameter 2-1/8 in, cylinder type 5-Pin.

The finish is of polished brass
Suitable for residential use
The door knob-grade is 3

About this item

What is this?: ProSource T9700BRA4V Entry Knob, Brass, K3, KW1 Keyway, 3 Grade. Listed under Entry Door Locks - Knob.
What is it made of?: Material: Brass.
What size is it?: Shipping carton measures 15.94 in long by 8 in wide by 17.13 in high.
How fast can I get it?: In stock at our 1587 First Avenue store. Order by 10am for same-day delivery anywhere in Manhattan.
What's the model number?: Model number T9700BRA4V, UPC 045734655706, our SKU 5099197.

Delivery and returns

Same-day delivery in Manhattan, order by 10am
Pickup at 1668 First Avenue.
Returns accepted within 30 days in original packaging with the receipt. Special-order items may be subject to a restocking fee : call the counter at (212) 535-8400.
