Shipping carton measures 7.25 in long by 7 in wide by 3.85 in high.

What's the model number?

Model number TM873WSLCCC5WP, UPC 785007106817, our SKU 9877994.

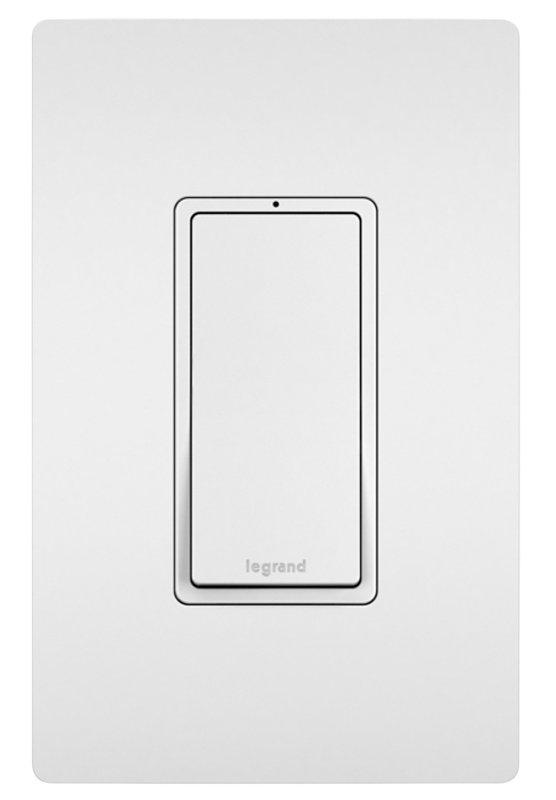

Legrand radiant TM873WSLCCC5WP Decorator Switch, 15 A, 120/277 V, 3-Way, Thermoplastic Housing Material, White

Model: TM873WSLCCC5WP
UPC: 785007106817
Our SKU: 9877994
Sold by: EA
Factory pack: 5

Part of the all-new radiant® collection
Smooth paddle action
High-impact resistant thermoplastic construction
External screw-pressure-plate back and side wired. Accepts #12 and #14 AWG
Push wire #14 AWG
Narrow back body leaves more room for wires in the box
Extra-long, through-body strap eliminates floating installations and imperfect applications
Easy-access green hex head ground screw
Tri-drive ground, terminal and mounting screws
This switch is compatible with incandescent loads only and is not recommended for use with LED or CFL lamps

The radiant collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes. Now part of the radiant collection, our paddle switches offer a better fit, form and finish. The smooth paddle action combines with subtle aesthetic improvements to deliver reliable performance. On-off switches conform to NEMA 430-104 requirements for kitchen disposal units.

$16.99per eachLaunch price

Special orderSpecial order. We'll call you with a date

Quantity

1 special order, 1 to 2 weeks

Availability

Special order, 1 to 2 weeks

Delivery

2 to 4 days from another distribution center

Not on the store truck

Model: TM873WSLCCC5WP
UPC: 785007106817
Our SKU: 9877994
Sold by: EA
Factory pack: 5

Product highlights

Voltage Rating

120/277 V

Temperature Rating

30 deg C

Contact Material

Brass

Color

White

Action

Off On

Contact Configuration

3-Way

Current Rating

Dimensions

4.19 in L x 1.43 in W x 1.27 in H

Specifications (18)

Full product specifications
Action	Off On
Color	White
Contact Configuration	3-Way
Contact Material	Brass
Current Rating	15 A
Dimensions	4.19 in L x 1.43 in W x 1.27 in H
Housing Material	Thermoplastic
Mounting Type	Screw
Temperature Rating	30 deg C
Voltage Rating	120/277 V
Weight	0.04 lb
Length (shipping)	7.25 in
Width (shipping)	7 in
Height (shipping)	3.85 in
Sold as	Sold by the ea
Factory pack	5
Country of origin	MX
Shipping dimensions	7.25 in long by 7 in wide by 3.85 in high

Product description

Finished in white, with action Off On, contact configuration 3-Way, contact material Brass.

Application

For commercial office, hospitality, multi-dwelling and residential applications

Part of the all-new radiant® collection
Smooth paddle action
High-impact resistant thermoplastic construction
External screw-pressure-plate back and side wired. Accepts #12 and #14 AWG
Push wire #14 AWG
Narrow back body leaves more room for wires in the box
Extra-long, through-body strap eliminates floating installations and imperfect applications
Easy-access green hex head ground screw
Tri-drive ground, terminal and mounting screws
This switch is compatible with incandescent loads only and is not recommended for use with LED or CFL lamps

About this item

What is this?: Legrand radiant TM873WSLCCC5WP Decorator Switch, 15 A, 120/277 V, 3-Way, Thermoplastic Housing Material, White. Listed under 3-way Switches.
What size is it?: Shipping carton measures 7.25 in long by 7 in wide by 3.85 in high.
What is it used for?: For commercial office, hospitality, multi-dwelling and residential applications
How fast can I get it?: 2 to 4 days from another distribution center.
What's the model number?: Model number TM873WSLCCC5WP, UPC 785007106817, our SKU 9877994.

Delivery and returns

2 to 4 days from another distribution center
Returns accepted within 30 days in original packaging with the receipt. Special-order items may be subject to a restocking fee : call the counter at (212) 535-8400.
