Shipping carton measures 7.5 in long by 3 in wide by 4.25 in high.

How fast can I get it?

In our warehouse. Arrives on the next truck, typically 2 business days : trucks arrive Tuesday, Wednesday, Thursday and Friday.

What's the model number?

Model number 7501V, UPC 032664627569, our SKU 7655897.

Eaton Wiring Devices

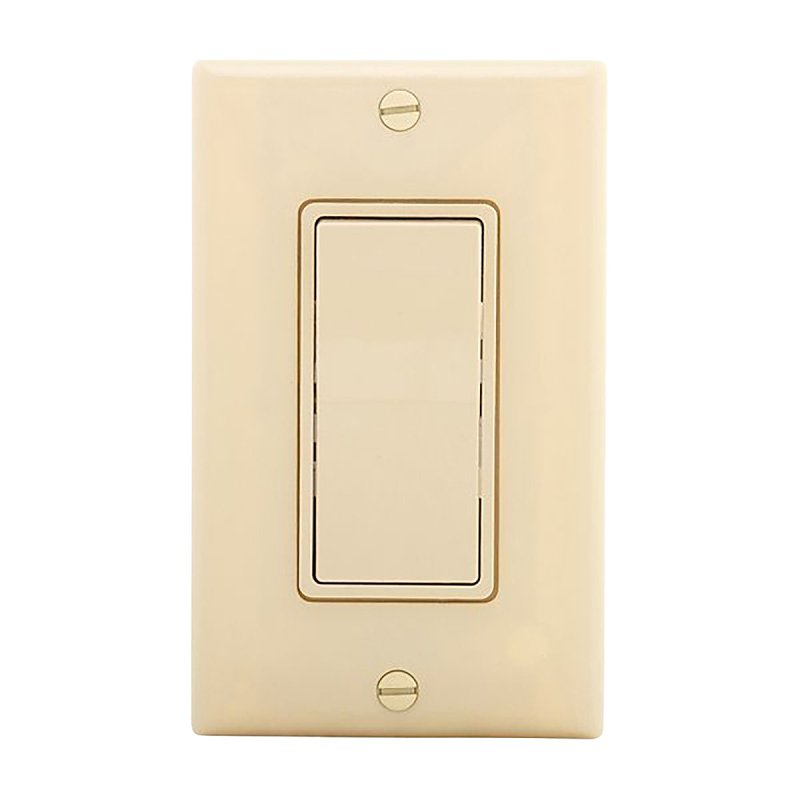

Eaton Wiring Devices 7500 Series 7501V Rocker Switch, 15 A, 120/277 V, Lead Wire Terminal, Ivory

Model: 7501V
UPC: 032664627569
Our SKU: 7655897
Sold by: EA
Factory pack: 10

Thermoplastic rocker, top and back body are virtually unbreakable to deliver years of durable performance
Ultrasonic welding and integrated construction of the strap and body provide great ground integrity even under heavy use
Backwire clamps on side terminals provide for easy installation of #12 and #14 AWG wire
Push-in terminals accept #14 AWG solid wire for quick installation
Stippled ground screw terminal standard
Long, broad mounting strap virtually eliminates floating installations
Patented built-in wire stripper for #14 and #12 AWG wire to speed installation
Tri-combo screws accept Slotted, Phillips and Robertson-head tools for installation flexibility
Lighted switches glow in OFF position
Redesigned paddle for easier actuation and quiet operation

Ultrasonic welding and integrated construction of the strap and body. Backwire clamps on the side terminals for installation of #12 and #14 wire. Thermoplastic rocker, top and back body are virtually unbreakable. Screws accept slotted, Phillips and Robertson head tools for installation in both the USA and Canada. Longer, wider strap provides 40% more contact area to wall board. Virtually eliminates floating installations. Built-in wire stripper for #12 and #14 wire. Stippled ground screw standard. 15 A, 120/277 VAC rating for fluorescent lighting fixtures typical in commercial applications. Push in terminals accept #14 solid wire only. Temperature rating of -20 to 60 deg C. Meets flammability requirements per UL 94, 6504, V2 rated, VO rated. UL and cUL listed, meets all UL20 requirements.

$3.49per eachLaunch price

Next truckIn on Thursday, Oct 22 : 2 business days

Quantity

1 next truck

Availability

57 on the Thursday, Oct 22 truck

Delivery

In on Thursday, Oct 22 : 2 business days

Delivery runs after the truck lands

Model: 7501V
UPC: 032664627569
Our SKU: 7655897
Sold by: EA
Factory pack: 10

Product highlights

Voltage Rating

120/277 V

Temperature Rating

-20 to 60 deg C

Housing Material

Thermoplastic

Color

Ivory

Contact Configuration

Current Rating

Dielectric Strength

2000 V

Dimensions

4.19 in L x 1.44 in W x 0.97 in D

Specifications (20)

Full product specifications
Color	Ivory
Contact Configuration	SPST
Current Rating	15 A
Dielectric Strength	2000 V
Dimensions	4.19 in L x 1.44 in W x 0.97 in D
Housing Material	Thermoplastic
Includes	(1) Metal Strap
Mounting Type	Strap
Number of Poles	2
Temperature Rating	-20 to 60 deg C
Terminal Type	Lead Wire
Voltage Rating	120/277 V
Weight	0.01 lb
Length (shipping)	7.5 in
Width (shipping)	3 in
Height (shipping)	4.25 in
Sold as	Sold by the ea
Factory pack	10
Country of origin	US
Shipping dimensions	7.5 in long by 3 in wide by 4.25 in high

Product description

Finished in ivory, with contact configuration SPST, current rating 15 A, dielectric strength 2000 V.

Application

For fluorescent lighting fixtures and a broad variety of applications

Thermoplastic rocker, top and back body are virtually unbreakable to deliver years of durable performance
Ultrasonic welding and integrated construction of the strap and body provide great ground integrity even under heavy use
Backwire clamps on side terminals provide for easy installation of #12 and #14 AWG wire
Push-in terminals accept #14 AWG solid wire for quick installation
Stippled ground screw terminal standard
Long, broad mounting strap virtually eliminates floating installations
Patented built-in wire stripper for #14 and #12 AWG wire to speed installation
Tri-combo screws accept Slotted, Phillips and Robertson-head tools for installation flexibility
Lighted switches glow in OFF position
Redesigned paddle for easier actuation and quiet operation

About this item

What is this?: Eaton Wiring Devices 7500 Series 7501V Rocker Switch, 15 A, 120/277 V, Lead Wire Terminal, Ivory. Listed under Single Pole Switches.
What size is it?: Shipping carton measures 7.5 in long by 3 in wide by 4.25 in high.
What is it used for?: For fluorescent lighting fixtures and a broad variety of applications
How fast can I get it?: In our warehouse. Arrives on the next truck, typically 2 business days : trucks arrive Tuesday, Wednesday, Thursday and Friday.
What's the model number?: Model number 7501V, UPC 032664627569, our SKU 7655897.
