Shipping carton measures 7.5 in long by 3 in wide by 4.25 in high.

How fast can I get it?

In our warehouse. Arrives on the next truck, typically 2 business days : trucks arrive Tuesday, Wednesday, Thursday and Friday.

What's the model number?

Model number 7503V, UPC 032664627682, our SKU 7655756.

Eaton

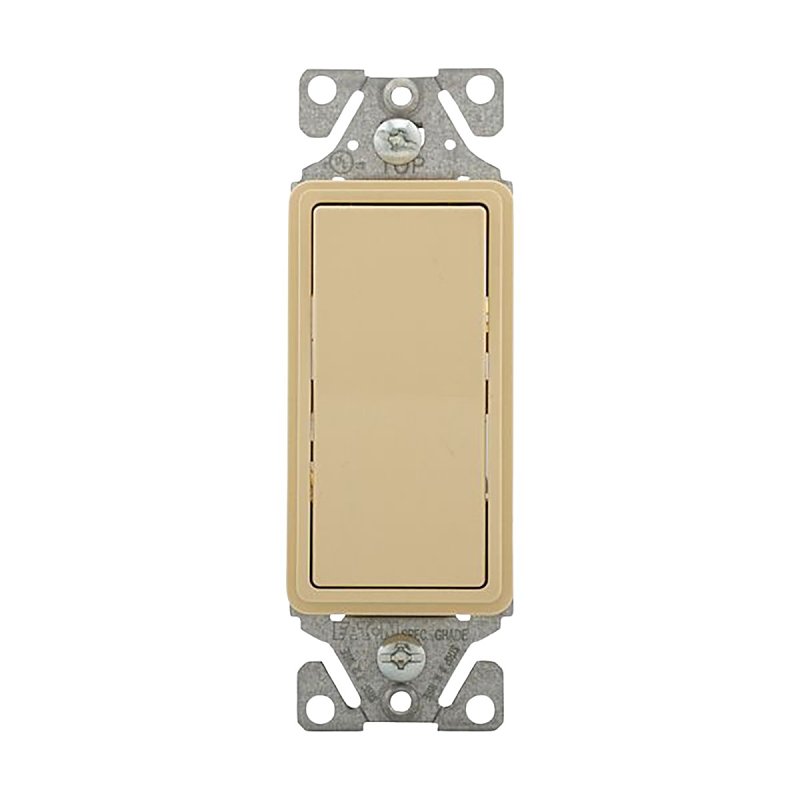

Eaton 7503 Series 7503V 3-Way Decorator Rocker Switch, 15 A, 120/277 V, 3-Way, Back Wire, Push Wire

Model: 7503V
UPC: 032664627682
Our SKU: 7655756
Sold by: EA
Factory pack: 10

Thermoplastic rocker, top and backbody are virtually unbreakable, promising years of durable performance
Ultrasonic welding and integrated construction of the strap and body provide great integrity
Backwire clamps on the side terminals provide for easy installation of #12 and #14 AWG wire
Push-in terminals accept #14 AWG solid wire
Stippled ground screw terminal standard
120/277 VAC rating ideal for fluorescent lighting fixtures and a broad variety of applications
Long, broad mounting strap virtually eliminates floating installations
Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
Tri-combo screws accept slotted, Philips and Robertson head tools for installation flexibility
Lighted switches glow in "Off" position

Eaton 7503 3-Way Decorator Rocker Switch, 120/277 V, 15 A, 60 Hz Frequency, 1 ph, 1 Pole, 3-Way Contact Configuration, 2000 V Dielectric Strength, Back Wire, Push Wire, Screw Terminal, -31 to 150.8 deg F, Flush Mounting, Nylon/PVC/Thermoplastic Housing Material, Ivory, Dimensions: 1.44 in L x 0.97 in W x 4.19 in H

$3.49per eachLaunch price

Next truckIn on Thursday, Oct 22 : 2 business days

Quantity

1 next truck

Availability

33 on the Thursday, Oct 22 truck

Delivery

In on Thursday, Oct 22 : 2 business days

Delivery runs after the truck lands

Model: 7503V
UPC: 032664627682
Our SKU: 7655756
Sold by: EA
Factory pack: 10

Product highlights

Voltage Rating

120/277 V

Temperature Rating

-31 to 150.8 deg F

Housing Material

Nylon/PVC/Thermoplastic

Color

Ivory

Contact Configuration

3-Way

Current Rating

Dielectric Strength

2000 V

Dimensions

1.44 in L x 0.97 in W x 4.19 in H

Specifications (21)

Full product specifications
Color	Ivory
Contact Configuration	3-Way
Current Rating	15 A
Dielectric Strength	2000 V
Dimensions	1.44 in L x 0.97 in W x 4.19 in H
Frequency Rating	60 Hz
Housing Material	Nylon/PVC/Thermoplastic
Mounting Type	Flush
Number of Phases	1
Number of Poles	1
Temperature Rating	-31 to 150.8 deg F
Terminal Type	Back Wire Push Wire Screw
Voltage Rating	120/277 V
Weight	0.01 lb
Length (shipping)	7.5 in
Width (shipping)	3 in
Height (shipping)	4.25 in
Sold as	Sold by the ea
Factory pack	10
Country of origin	US
Shipping dimensions	7.5 in long by 3 in wide by 4.25 in high

Product description

Finished in ivory, with contact configuration 3-Way, current rating 15 A, dielectric strength 2000 V.

Thermoplastic rocker, top and backbody are virtually unbreakable, promising years of durable performance
Ultrasonic welding and integrated construction of the strap and body provide great integrity
Backwire clamps on the side terminals provide for easy installation of #12 and #14 AWG wire
Push-in terminals accept #14 AWG solid wire
Stippled ground screw terminal standard
120/277 VAC rating ideal for fluorescent lighting fixtures and a broad variety of applications
Long, broad mounting strap virtually eliminates floating installations
Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
Tri-combo screws accept slotted, Philips and Robertson head tools for installation flexibility
Lighted switches glow in "Off" position

About this item

What is this?: Eaton 7503 Series 7503V 3-Way Decorator Rocker Switch, 15 A, 120/277 V, 3-Way, Back Wire, Push Wire. Listed under 3-way Switches.
What size is it?: Shipping carton measures 7.5 in long by 3 in wide by 4.25 in high.
How fast can I get it?: In our warehouse. Arrives on the next truck, typically 2 business days : trucks arrive Tuesday, Wednesday, Thursday and Friday.
What's the model number?: Model number 7503V, UPC 032664627682, our SKU 7655756.

Delivery and returns

In on Thursday, Oct 22 : 2 business days
Returns accepted within 30 days in original packaging with the receipt. Special-order items may be subject to a restocking fee : call the counter at (212) 535-8400.
