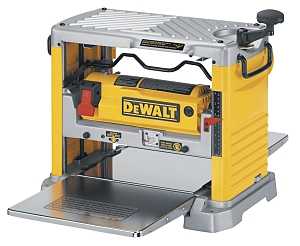

DEWALT DW735 Thickness Planer with Three Cutter, 15 A, 2 hp, 13 in W Planning, 1/8 in D Planning, Carriage Lock Control

Automatic carriage lock for reduction of movement that causes snipe without need for manual engagement by user. Two-speed gear box allows user to change feed speed to optimize cuts per inch at 96 or 79 cpi. Fan assisted chip ejection vacuums chips off the cutter-head and exhausts them out of the machine. Material removal gauge and extra-large thickness scale for accurate cuts. Extra-large turret depth stop. Standard equipment is dust hose adapter and dust ejection chute. Rated at 15 A, 120 VAC motor, 10,000 rpm, 1/8 in maximum depth of cut 1/8 in, 6 in D/13 in D capacity. Feeds 14 or 26 ft/min.

Has amp rating 15 A, control type Carriage Lock, cord length 13 ft.

• Powerful 15 A, 20,000 rpm motor handles larger cuts in wider materials with ease
• Three knife cutter head with 10,000 rpm cutter-head speed delivers 30% longer knife life and makes knife change faster and easier
• Two-speed gear box allows users to change feed speed to optimize cuts per inch at 96 or 179 cpi
• Fan-assisted chip ejection vacuums chip off of the cutter head and exhausts them out of the machine
• 19-3/4 in cast aluminum base is 2X more rigid than a standard 10 in base and folding tables
• Automatic carriage lock reduces the movement that causes snipe without the need for manual engagement by the user
• Material removal gauge and extra-large thickness scale deliver accurate cuts with every pass
• Extra-large, turret depth stop allows user to return to most frequently used thicknesses with ease

Warranty

3 Year Limited
